--AquaFlo

AQUAFLO DOMINATOR MEDIUM HEAD

AQUAFLO DOMINATOR MEDIUM HEAD

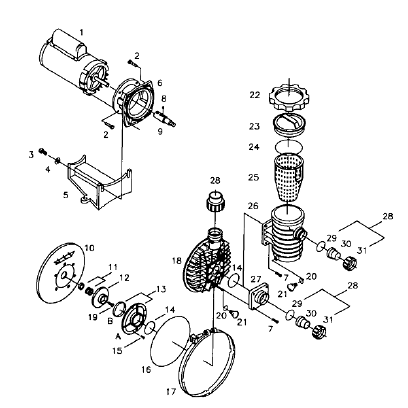

Item Part Num Description

Price

 Buy
1 - Motor , 56 Frame, "C" Face, Keyed
1 LT93490600 Motor, .50 HP 293.34
1 LT93491500 Motor, .75 HP 328.98
1 LT93493500 Motor, 1.0 HP 378.1
1 LT93495200 Motor, 1.5 HP 484.66
1 LT93496200 Motor, 2.0 HP 554.03
1  LT93497200 Motor, 3.0 HP 804.1
1 LT93490700 Motor, .50 HP, 2 Spd. 496.81
1 LT93491700 Motor, .75 HP, 2 Spd. 516.39
1 LT93493700 Motor, 1.0 HP, 2 Spd. 514.83
1 LT93495300 Motor, 1.5 HP, 2 Spd. 616.03
1 LT93496300 Motor, 2.0 HP, 2 Spd. 732.56
2 LT99050250 Bolt, Hex Machine, 3/8-16 x 1 0.74
3 LT99050300 Bolt, Hex Machine, 3/8-16 x 1 1/2 1.03
4 LT99890000 Washer, Flat 3/8 0.32
5 LT91100150 Base   13.34
6 LT91140351 Bracket, 200 Seal 15.97
7 LT99050000 Bolt, Hex Machine, 3/8 -16 x 3/4 0.67
8 LT99730000 Screw, Socket Set 1/4 - 20 x 5/16 0.45
9 (3) LT92520040 ShLTt, Extension, 200 Seal 29.92
10 LT92280003 Plate, Seal, 200 Seal 67.15
11 (4) LT92500150 Seal, Replacement, 200 Seal 13.06
APCAS200 APC Seal, Replacement Seal 6.09
12 LT91692405 Impeller, .50 HP, Medium Head 33.73
12 LT91692455 Impeller, .75 HP Medium Head 33.73
12 LT91692505 Impeller, 1.0 HP, Medium Head 33.73
12 LT91692555 Impeller, 1.5 HP, Medium Head 33.73
12 LT91692605 Impeller, 2.0 HP, Medium Head 33.73
13 LT56910070 Diffuser Assembly Diffuser - 11.39
14 LT92200100 O-Ring, #229 0.32
  APCO301 APC O-Ring 0.62
15 LT99730550 Screw, 8/32 x 1 Phillips Pan Head 0.32
16 LT92200180 O-Ring, #449 4.18
  APCO240 APC O-Ring, #449 4.68
17 LT99100020 Clamp, V, D Series, w/knob 29.07
18 LT91200003 Casing, D Series 67.45
19 LT99730160 Screw, 1/4-20 x 1/2 , LH, RD, HD 0.61
20 LT92200060 0-Ring, #111 0.32
  APCO25 APC 0-Ring, #111 0.21
21 LT92290020 Plug, Pipe, Wing 0.32
22 LT91920050 Lock Ring, Trap 10.97
23 LT91230300 Cover, Trap 21.35
24 LT92200190 O-Ring, Trap Lid, #254 2.26
  APCO48 APC O-Ring, Trap Lid, #254 1.97
25 LT91110040 Basket, Strainer 6", D' Series 6.43
  APCB199 APC Basket,  6" D Series 8.87
26 LT92620552 Trap, 6 x 2 50.5
27 LT91450210 Flange, Suction 2 10.55
28 LT52203000 Fitting, Compression Comp., 2 x 1 6.38
- LT52202000 Fitting, Compression Comp., 2 x 2, set of 2 6.38
29 LT92200210 O-Ring, #230 0.32
  APCO43 APC O-Ring, #230 0.62
30 LT91431250 Fitting, Tail Piece, 2 x 1 1/2 4.16
- LT91431200 Fitting, Tail Piece, 2 2.54
31 LT91431150 Fitting, Union Nut, 2 3.08
#2 LT91040250 Assembly, Trap Complete 6 x 2 103.26
- LT91250000 Motor Base Cushion 0.32
  APCKIT36 Pump Repair Kit  (Prior to 1995) 22.71
  APCKIT45 Pump Repair Kit  (LTter 1995) 23.53
DOMINATOR TWO SPEED PUMP, 6" TRAP
  LT15107000 .75 HP, 115V, 1 1/2" Suction 650.62
  LT15110000 1.0 HP, 230V, 1 1/2" Suction 625.38
  LT15115000 1.5 HP, 230V, 2" Suction 671.42
  LT15120000 2.0 HP, 230V, 2" Suction 779.31

DOMINATOR WET ENDS
  LT15907000 .75 HP, 1 1/2" Suction 294.9
  LT15910000 1.0 HP, 1 1/2" Suction 294.9
  LT15915000 1.5 HP,  2" Suction 294.9
  LT15920000 2.0 HP,  2" Suction 294.9
